RoboPack

Overview

The Robopack system is a specialized automated printing station designed for printing EIFS (Exterior Insulation and Finish System) product labels directly onto bags. This feature integrates with the Print Maestro printer system to automatically print stickers for EIFS bags with specific customer information, dimensions, lot numbers, and product specifications.

Purpose

Robopack streamlines the EIFS bag labeling process by:

Automating label printing for EIFS production jobs
Creating EIFS bag inventory automatically upon successful print job submission
Tracking print jobs to enable reprinting if labels are damaged or misprinted
Managing multiple bag specifications including bag type, size (with fractional sizes), drainage options, and pieces per bag
Reducing manual entry errors through structured data validation and editable tables

Key Features

Job Selection Interface - Users select from active EIFS jobs in progress, filtered by sales order, customer, and lot number
Interactive Print Table - Tabulator-based editable table allowing operators to specify:
- Quantity of bags to print
- Product type (EPS or GPS)
- Bag type selection from available inventory
- Size specifications (whole numbers and fractional inches)
- Pieces per bag count
- Drainage designation (yes/no checkbox)
Real-time Progress Tracking - Dashboard cards display total bags printed vs. target quantities for each bag type
Print Job Management - Each row can be printed individually, with the ability to resend failed or damaged labels
Automatic Inventory Management - System automatically removes stickers and bags from inventory upon successful print job creation

Access Requirements

Access to the Robopack system is restricted to users who are logged in and have appropriate production floor permissions. The system is accessed from the home page via navigation to specific EIFS jobs.

Workflow Overview

User navigates to Robopack Jobs page (/robopack/jobs)
System displays all active EIFS jobs that are in progress (not yet completed)
User selects a job to begin printing labels
System displays the Robo Pack In Progress page with:
- Job information (sales order, customer, lot number)
- Editable table for specifying print specifications
- Progress cards showing printed quantity vs. target quantity
User fills in print specifications for each bag size/type needed
User clicks Print button for each row
System validates the data, creates EIFS bags in the database, removes inventory, and sends the print job to Print Maestro
Labels print at the Robopack station
User can resend labels if needed or exit the station when complete

![INSERT IMAGE HERE: Screenshot of the Robopack Jobs page showing available EIFS jobs with job IDs, sales orders, customers, and start dates]

![INSERT IMAGE HERE: Screenshot of the Robo Pack In Progress page showing the editable table, progress cards, and print buttons]

Note: The Robopack feature occasionally experiences issues where table rows do not populate correctly. A Refresh Page button is provided in the top-right corner to reload the data if this occurs.

Front-End Behavior

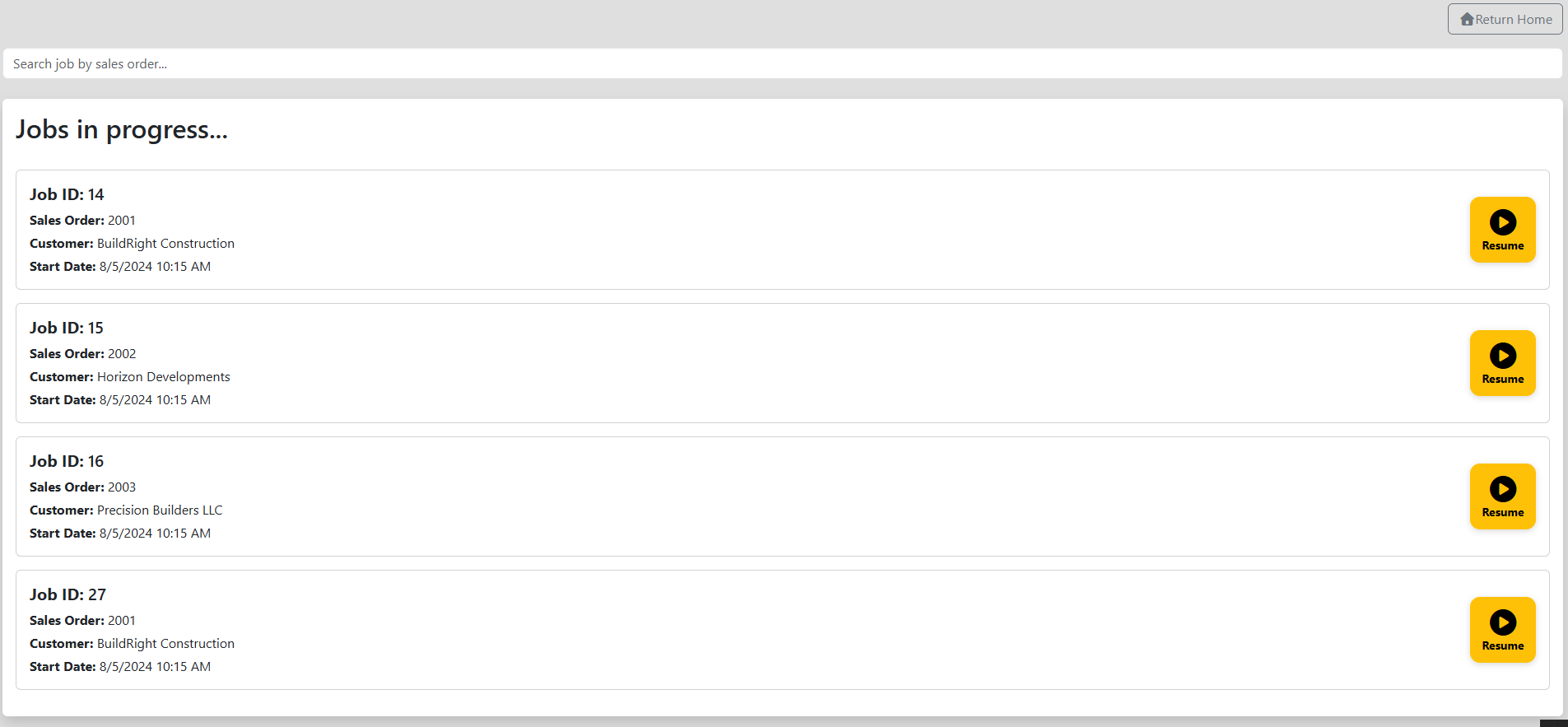

Page 1: Robopack Jobs (`/robopack/jobs`)

File Location: src/app/Views/robopack/robo_pack_jobs.php

Page Layout

The jobs selection page provides a simple interface for choosing which EIFS job to work on:

Header Section:

Go Back button (top-left) - Returns to /user/view (home page)
Search bar - "Search job by sales order..." with real-time filtering

Jobs Display:

White card-based layout with shadow effect
Header: "Jobs in progress..."
Each job card displays:
- Job ID
- Sales Order number
- Customer name
- Start Date (formatted as M/D/YYYY h:mm A)
- Start Job button (blue, right-aligned)

Empty State:

If no EIFS jobs are in progress: "No EIFS jobs are in progress at this time."

![INSERT IMAGE HERE: Screenshot showing the Robopack Jobs page with multiple job cards, each displaying job details and a Start Job button]

Interactive Elements

Search Functionality:

Real-time search using search_jobs() function
Filters job cards by sales order number
Uses jQuery to show/hide cards based on search input
Each card has ID: sales_order_\{sales_order_label\}

Job Card Click:

Clicking Start Job button navigates to /robopack/in_progress/\{job_id\}
Loads the in-progress page for the selected job

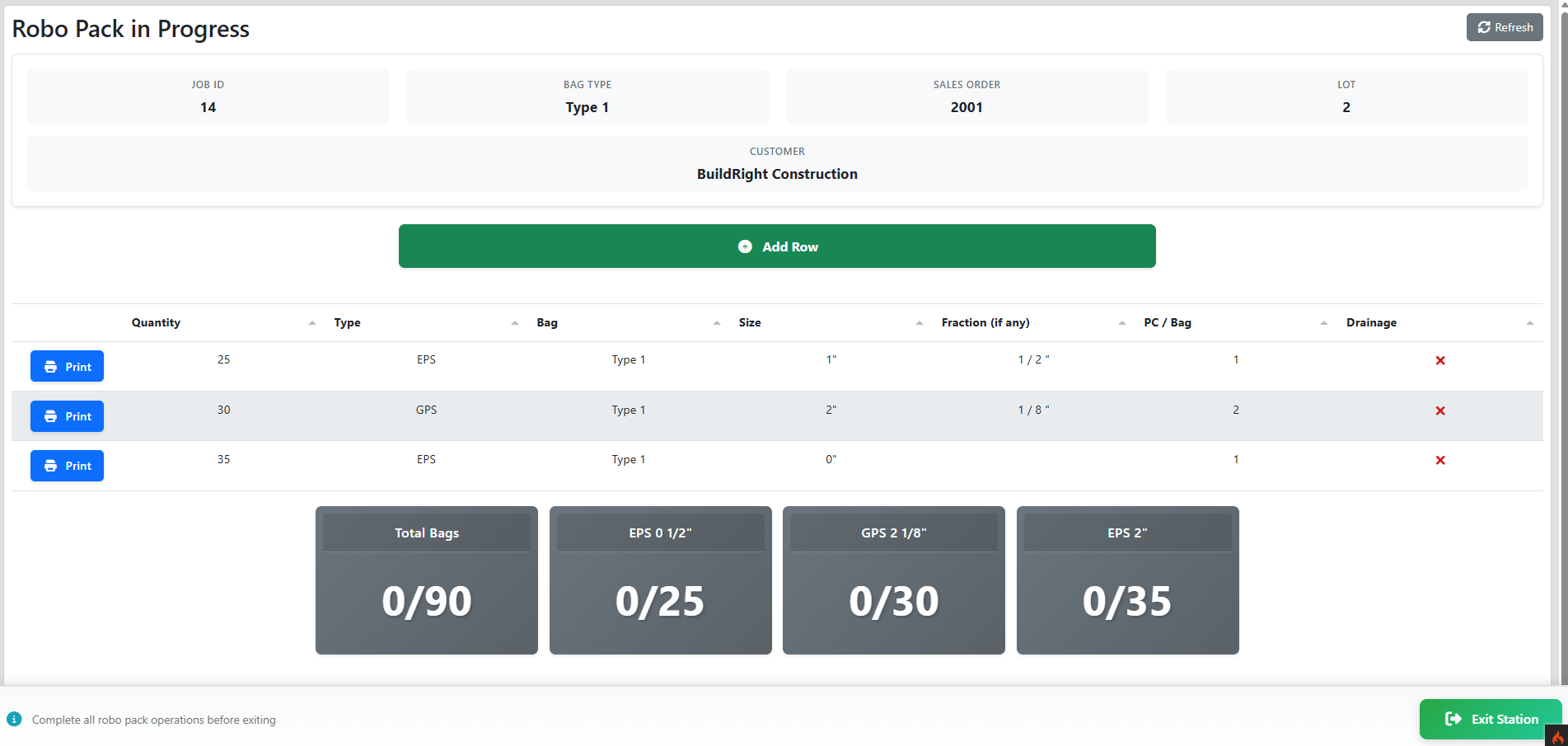

Page 2: Robo Pack In Progress (`/robopack/in_progress/\{job_id\}`)

File Location: src/app/Views/robopack/robo_pack_in_progress.php JavaScript: src/public/js/robopack/robo_pack_in_progress.js CSS: src/public/css/eifs/robo_pack_in_progress.css

Page Layout

Header Section:

Title: "Robo Pack in Progress" (h2)
Refresh Page button (top-right) - Reloads the entire page to fix table population issues
Toast notification container (top-right) for alerts

Job Information Table: A bordered table displays current job details (some columns hidden with d-none class):

Column	Visible	Content
Job ID	No	Hidden (used by JavaScript)
EIFS Job ID	No	Hidden (used by JavaScript)
Bag Type	Yes	EIFS bag type label
Sales Order	Yes	Sales order number
Customer	Yes	Customer name
Lot	Yes	Lot number

Action Buttons:

Add Row button (blue outline) - Adds a new empty row to the print table

Print Specifications Table: The main interactive table (#robo_pack_table) built with Tabulator.js:

Column	Type	Behavior
Print Button	Action	"Print" (blue) or "Resend" (yellow) button
Quantity	Number	Editable, min: 0, required
Type	Dropdown	EPS or GPS selection, required
Bag	Dropdown	List of available bag types for job type 7
Size	Number	Whole number size in inches, min: 0, required
Fraction (if any)	Modal Trigger	Click to open fraction editor modal
PC / Bag	Number	Pieces per bag count, min: 0, required
Drainage	Checkbox	Tick/cross formatter, toggles drainage designation

Table Row Coloring:

Green background (rgba(125,255,99,0.54)) - Row has been printed successfully (done === 1)
White background - Row not yet printed or pending

Progress Cards: Bottom section displays real-time progress tracking cards:

Total Bags Card:
- Header: "Total Bags"
- Display: \{printed\}/\{target\} in 50px font
- Background: Gray (bg-secondary) initially
- Changes to green (bg-success) when target met
Individual Bag Type Cards:
- One card per EIFS bag type target
- Header: Bag type label (e.g., "2x4x8 EPS")
- Display: \{printed\}/\{target\} for that specific type
- Background: Gray initially, green when target met
- Cards generated dynamically from $targets array
- Only shows bag types with quantity > 0

Exit Button:

Exit Robo Pack Station button (blue) - Returns to /robopack/jobs

![INSERT IMAGE HERE: Close-up of the editable Tabulator print table showing columns for Quantity, Type, Bag, Size, Fraction, PC/Bag, and Drainage with both Print and Resend buttons]

![INSERT IMAGE HERE: Progress cards section showing the Total Bags card and individual bag type cards with printed/target counts]

Interactive Elements

1. Loading States:

The table uses a loading overlay during AJAX operations:

.loader-overlay {
    position: absolute;
    background: rgba(255, 255, 255, 0.7);
    display: flex;
    justify-content: center;
    align-items: center;
    z-index: 100;
}

Shows spinner icon during data loading
Appears when fetching print job info
Automatically removed on success/error

2. Table Editing:

Type Selection:

Dropdown with "EPS" or "GPS" options
On change:
- Sets label_name to "LotStickerGPS" or "LotStickerEPS"
- Resets fraction data
- Resets drainage flag
- Redraws table

Bag Type Selection:

Populated from API call to /api/bag/get_types with job_type_id: 7
Lists all available bag type labels
Allows custom bag entry

Size Input:

Numeric input for whole inches
Displays with " suffix in table
Combined with fraction for total size

Fraction Editor:

Click "Fraction" cell to open modal
Modal contains:
- Numerator input (top)
- Visual divider line
- Denominator input (bottom)
- Cancel button (gray)
- Remove Fraction button (red) - Clears fraction data
- Save Fraction button (blue) - Saves and updates label name

Validation:

Numerator and denominator must be > 0
Displays as \{numerator\} / \{denominator\} " in table
Updates label_name to include "Frac" suffix (e.g., "LotStickerEPSFrac")

Drainage Checkbox:

Visual tick/cross formatter
Click to toggle between true/false
When true, appends "DB" to label name

3. Print Job Workflow:

Initial Print:

User fills in row data
Clicks Print button
Button becomes disabled with text "Printing..."
JavaScript validates data via validate_print_job():
- All PC/Bag, Quantity, and Size values must be > 0
- Type must be selected
- Calculates total print size: size_value + (numerator / denominator)
System shows "Sending..." notification
Calls post_print_job() with resend: 0
On success:
- Button changes to yellow Resend button
- Row background turns green
- Notification: "Successfully sent order to printer"
- Progress cards update via update_eifs_targets()
On error:
- Shows API error notification
- Button re-enables

Resend Print Job:

User clicks Resend button
System calls show_resend_modal() with row position
Modal displays current row data in read-only table:
- Quantity, Type, Bag, Size, Fraction, PC/Bag, Drainage
User clicks Resend Job button in modal
System validates and calls post_print_job() with resend: 1
Modal closes and print job re-submits

4. Progress Card Updates:

Function update_eifs_targets(job_id) polls /api/eifs_bag/get_job_totals:

Updates #total_\{bag_type_id\} with current count
Updates #total with overall count
Compares printed vs. target:
- If printed >= target: Changes card to green (bg-success)
- If printed < target: Keeps gray (bg-secondary)
Called after each successful print job

5. Add Row Functionality:

Add Row button calls add_table_row()
Adds new empty row to Tabulator table
User can fill in specifications for additional print jobs
Allows printing multiple label types for same job

6. Refresh Page:

Top-right Refresh Page button uses window.location.reload()
Workaround for occasional table population issues
Reloads entire page with fresh data from server

User Experience Notes

Visual Feedback:

Notifications appear in top-right corner (toast style)
Color coding (green = complete, gray = in progress)
Button state changes (Print → Printing... → Resend)
Row highlighting for completed prints

Error Handling:

Validation messages via $.notify() notifications
API errors displayed with details
Prevents invalid data submission
User-friendly error messages

Responsive Design:

Table uses layout: "fitColumns" to adapt to screen width
Progress cards use flexbox layout
Cards stack on smaller screens

![INSERT IMAGE HERE: Screenshot of the Fraction Editor modal showing numerator and denominator inputs with Cancel, Remove Fraction, and Save Fraction buttons]

![INSERT IMAGE HERE: Screenshot of the Resend Job modal displaying a previously printed job's details in a read-only table]

Back-End Logic

Controller: `Robopack`

File Location: src/app/Controllers/Robopack.php

The Robopack controller manages the two main pages for the Robopack printing station.

Method: `jobs()`

Route: /robopack/jobs

Displays the job selection page showing all active EIFS jobs.

public function jobs(): string
{
    $title['title'] = "Robo Pack";
    $data['jobs'] = Job_model::has('eifs_jobs')->where('finish', NULL)
        ->with('eifs_jobs.sales_order')->get();
    $data['warning'] = json_encode($_SESSION);

    return view('templates/header', $title) .
        view('robopack/robo_pack_jobs', $data) .
        view('templates/footer');
}

Logic:

Queries job table for jobs with associated eifs_jobs records
Filters to only incomplete jobs (finish is NULL)
Eager loads eifs_jobs.sales_order relationship for display
Passes jobs array to view for rendering
Returns rendered view with header and footer

Method: `in_progress(int $job_id)`

Route: /robopack/in_progress/\{job_id\}

Displays the main Robopack printing interface for a specific EIFS job.

public function in_progress(int $job_id): string|RedirectResponse
{
    $this->validation->setRule("job_id", "Job ID",
        "required|numeric|is_not_unique[job.id]");

    if(!$this->validation->run(['job_id' => $job_id])) {
        log_message("error", __CLASS__ . "::" . __FUNCTION__ .
            "() - Validation errors: " .
            json_encode($this->validation->getErrors(), JSON_PRETTY_PRINT));
        return redirect()->back()->withInput()
            ->with('errors', $this->validation->getErrors());
    }

    $job = Job_model::with('eifs_job')->find($job_id);

    if($job['finish'] !== NULL) {
        log_message('warning', 'Attempted to start a ROBOPACK/EIFS job with ID : '
            . $job_id . ' that was already complete');
        return redirect()->with("messages",
            ["Robopack job with ID" . $job_id . " already complete"])
            ->to('/robopack/jobs');
    }
    else {
        $data['user'] = auth()->user();
        $data['job'] = $job;
        $data['target_total'] = Eifs_bag_target_model::getJobTargetTotal($job_id);
        $data['targets'] = Eifs_bag_target_model::with('eifs_bag_type')
            ->where('job_id', $job_id)
            ->where('quantity', '>', 0)->get();

        $title['title'] = "Robo Pack In Progress";

        return view('templates/header', $title) .
            view('robopack/robo_pack_in_progress', $data) .
            view('templates/footer');
    }
}

Logic:

Validates job_id parameter exists in database
Loads job with EIFS job relationship from database
Checks if job is already complete:
- If finish is not NULL, redirects back to jobs page with warning
- Logs warning message about attempted access to completed job
Prepares data for view:
- Current authenticated user
- Job record with EIFS job details
- Total target quantity across all bag types
- Individual targets for each EIFS bag type (only where quantity > 0)
Returns rendered view with data

API Controller: `PrintJob`

File Location: src/app/Controllers/Api/PrintJob.php

The PrintJob API controller handles the creation and management of print jobs sent to the Print Maestro system.

Method: `send()`

Route: /api/print_job/send (POST)

Creates a single print job for Robopack printing and manages associated EIFS bag creation.

Validation Rules:

'resend'            => 'required|numeric|in_list[0,1]'
'size_value'        => 'required|numeric|greater_than_equal_to[0]'
'size_numerator'    => 'required|numeric|greater_than_equal_to[0]'
'size_denominator'  => 'required|numeric|greater_than_equal_to[0]'
'quantity'          => 'required|numeric|greater_than[0]'
'job_id'            => 'required|numeric|is_not_unique[job.id]'
'label_name'        => 'required|alpha_numeric_punct|max_length[255]'
'type'              => 'required|string|in_list[eps,EPS,gps,GPS]'
'bag_type'          => 'required|alpha_numeric_punct|min_length[2]|max_length[255]'
'is_drainage'       => 'required|alpha|in_list[true,false]'

Processing Flow:

Validate Input - Ensures all required parameters are present and valid

Load Job Data:

$job = Job_model::with('eifs_job')->find($valid_data['job_id']);

Find EIFS Bag Type ID:

$eifs_bag_type_id = find_eifs_bag_type(
    $valid_data['size_value'],
    $valid_data['size_numerator'],
    $valid_data['size_denominator'],
    $valid_data['type']
);

Constructs label like "EPS 2 1/2"" or "GPS 4""
Searches eifs_bag_type table for matching record
Returns -1 if not found (triggers error response)

Handle Resend (if resend === 1):
```
delete_previous_print_job($valid_data, $job->eifs_job->id, $eifs_bag_type->id);
```
- Deletes the old print job record to avoid duplicates
Find EIFS Block:
```
$eifs_block_id = find_eifs_block_id($job->id, $eifs_bag_type_id);
```
- Searches for an EIFS block of matching type with < 12 bags already made
- Returns -1 if no suitable block found (creates notification)
Calculate Totals:
- Type Total: Sum of quantity from eifs_bag_target for this specific bag type
- Job Total: Sum of all quantity values across all bag types for this job
- Starting Number: Count of previously printed labels for this specific size + 1
- Job Count: Total number of labels printed so far on entire job
Create EIFS Bags:
```
make_eifs_bags(
    $valid_data['bag_type'],
    $valid_data['quantity'],
    $valid_data['job_id'],
    $eifs_bag_type->id,
    $eifs_block_id
);
```
- Creates quantity number of eifs_bag records
- Associates each bag with:
  - EIFS bag type
  - Bag type (for packaging)
  - EIFS block (if found)
  - Job ID
- Removes stickers and bags from inventory
- Logs inventory removal

Create Print Job Record:

$print_job = new Print_job_model();
$print_job->fill($valid_data);
if ($valid_data['is_drainage'] == 'true')
    $print_job->label_name .= 'DB';
$print_job->copies = $valid_data['quantity'];
$print_job->size_total = substr(str_repeat(0, 3) . $type_total, -3);
$print_job->job_total = substr(str_repeat(0, 3) . $total, -3);
$print_job->job_count = substr(str_repeat(0, 3) . $job_count, -3);
$print_job->size_count = $starting_number;
$print_job->print_type = 0; // Robo pack print job
$print_job->save();

Appends "DB" to label name for drainage bags
Pads counts with zeros (e.g., 5 becomes "005")
Sets print_type = 0 to identify as Robopack job
Saves to print_job table

Return Response:

return $this->respondCreated($print_job);

Method: `get_label_info()`

Route: /api/print_job/get_label_info (POST)

Retrieves all print job information for a specific EIFS job, including both printed and pending jobs.

Validation Rules:

'job_id' => 'required|numeric|is_not_unique[job.id]'

Processing Flow:

Load Job with Relationships:

$job = Job_model::with(
    'eifs_targets.eifs_bag_type',
    'eifs_targets.bag_type',
    'eifs_job.sales_order',
    'print_jobs'
)->find($valid_data['job_id']);

Query Already Printed Jobs:

SELECT
    SUM(copies) as quantity,
    size_value, size_numerator, size_denominator,
    label_name, bag_type, piece_count as pcs_per_bag,
    eifs_job.lot_number, sales_order.label as sales_order
FROM print_job
WHERE print_job.job_id = \{job_id\}
GROUP BY size_value, size_numerator, size_denominator,
         label_name, bag_type, piece_count

Aggregates print jobs by size/type
Joins with eifs_job and sales_order for display data

Format Printed Jobs:
```
$data['printed_jobs'] = format_printed_jobs($printed_jobs);
```
- Sets done = 1 to mark as printed
- Extracts type ("EPS" or "GPS") from label name
- Formats fraction as readable string ("1 / 2")
- Detects drainage designation from label name

Get Pending Print Jobs:

foreach ($job->eifs_targets as $target) {
    $print_job = get_eifs_target_print_job($target, $job);
    if ($print_job !== []) {
        $data['print_jobs'][] = $print_job;
    }
}

Iterates through each EIFS bag target
Creates print job structure if target not yet fully printed
Populates with job details (customer, sales order, lot number)

Return Combined Data:
```
return $this->respond($data);
```
- Returns array with print_jobs (pending) and printed_jobs (completed)

Helper Functions

File Locations:

src/app/Helpers/eifs_helper.php
src/app/Helpers/print_job_helper.php
src/app/Helpers/bag_helper.php
src/app/Helpers/sticker_helper.php

`find_eifs_bag_type()`

Converts size parameters to EIFS bag type ID.

function find_eifs_bag_type(
    int $size_num,
    int $size_numerator,
    int $size_denominator,
    string $print_label
): int

Logic:

Calls get_eifs_label() to construct label string
Searches eifs_bag_type table for matching label
Returns ID if found, -1 if not found

`get_eifs_label()`

Constructs EIFS bag type label string from size components.

function get_eifs_label(
    string $type,
    int $size,
    int $num = -1,
    int $denom = -1
): string|null

Examples:

get_eifs_label('EPS', 2, 1, 2) → "EPS 2 1/2\""
get_eifs_label('GPS', 4, 0, 0) → "GPS 4\""
get_eifs_label('EPS', 3, 3, 4) → "EPS 3 3/4\""

`find_eifs_block_id()`

Finds an available EIFS block for associating with new bags.

function find_eifs_block_id(int $job_id, int $eifs_bag_type_id): int

Logic:

Loads job with eifs_blocks and eifs_bags relationships
Iterates through EIFS blocks looking for:
- Matching eifs_bag_type_id
- Less than 12 bags already created from block
Returns first matching block ID, or -1 if none found

Why < 12 bags? Each EIFS block typically yields approximately 12 bags when cut.

`make_eifs_bags()`

Creates EIFS bag records and removes inventory.

function make_eifs_bags(
    string $bag_type_label,
    int $quantity,
    int $job_id,
    int $eifs_bag_type_id,
    int $eifs_block_id = null,
    int $add_job_id = null
): void

Logic:

Find Bag Type:
- Searches for bag type by label
- Falls back to "default" bag type if not found

Create EIFS Bags:

$eifs_bags_created = create_eifs_bags(
    $eifs_bag_type_id,
    $bag_type->id,
    $quantity,
    $eifs_block_id,
    $add_job_id
);

Creates quantity number of eifs_bag records
Associates with EIFS block if provided

Remove Inventory:
```
remove_sticker($sticker_type->id, $quantity, $job_id);
remove_bag($bag_type->id, $quantity, $job_id);
```
- Deducts printed stickers from inventory
- Deducts packaging bags from inventory
- Logs inventory removal
- Creates notification if inventory insufficient

`find_starting_number()`

Calculates the starting sequential number for labels of a specific size.

function find_starting_number(array $data): int

Logic:

Queries print_job table for matching:
- job_id
- size_value
- label_name
- size_numerator
- size_denominator
Sums all copies for matching records
Returns sum + 1 (next sequential number)

Example: If 25 labels of "EPS 2"" have been printed, returns 26.

`find_print_job_count()`

Calculates total labels printed for entire job.

function find_print_job_count(int $job_id): int

Logic:

Queries print_job table for all records with matching job_id
Sums copies across all sizes/types
Returns total count

Example: Job has printed 50 EPS 2", 30 GPS 4", returns 80.

Database Tables

`print_job` Table

Stores individual print job records sent to Print Maestro.

Key Fields:

id - Primary key
job_id - Foreign key to job table
label_name - Template name (e.g., "LotStickerEPS", "LotStickerGPSFrac", "LotStickerEPSDB")
copies - Number of labels to print
size_value - Whole number size (e.g., 2, 4)
size_numerator - Fraction numerator (0 if no fraction)
size_denominator - Fraction denominator (0 if no fraction)
bag_type - Packaging bag type label
pcs_per_bag / piece_count - Pieces per bag count
lot_number - Lot number for tracking
sales_order - Sales order number
customer - Customer name
size_total - Total labels for this specific size (padded: "025")
job_total - Total labels for entire job (padded: "150")
job_count - Sequential count across entire job (padded: "051")
size_count - Sequential count for this size (e.g., 1, 2, 3...)
print_type - Print job type:
- 0 = Robopack print job
- 1 = Manual EIFS print job
- 2 = BuildBlock print job
- 3 = CreteHeat print job
- 4 = Manual shape mold print job
created_at - Timestamp

`eifs_bag` Table

Stores EIFS bag inventory records.

Key Fields:

id - Primary key
eifs_bag_type_id - Foreign key to eifs_bag_type (product size/type)
bag_type_id - Foreign key to bag_type (packaging bag)
eifs_block_id - Foreign key to eifs_block (source block)
add_job_id - Foreign key to job (job that created the bag)
created_at - Timestamp

Note: Each record represents a single EIFS bag in inventory.

`eifs_bag_target` Table

Stores production targets for EIFS jobs.

Key Fields:

id - Primary key
job_id - Foreign key to job
bag_type_id - Foreign key to eifs_bag_type
quantity - Target number of bags to produce

Note: Targets are set when EIFS job is created and drive the progress tracking.

`eifs_block` Table

Stores EIFS block records (cut blocks ready for bagging).

Key Fields:

id - Primary key
eifs_bag_type_id - Size/type this block will be cut into
block_id - Foreign key to source block
job_id - Job this block was cut for
date_used - When block was cut

Note: Each block typically yields ~12 bags.

Authentication & Authorization

Required Permissions:

User must be authenticated via CodeIgniter Shield
No specific group restrictions on Robopack pages
Access is typically available to production floor users

Session Management:

Uses CodeIgniter Shield for authentication
auth()->user() retrieves current user
User information passed to views for audit tracking

Error Handling

Validation Errors:

All API endpoints use CodeIgniter validation
Validation failures return failValidationErrors() response
Errors logged via log_message('error', ...)

Business Logic Errors:

EIFS bag type not found → Returns validation error with message
Job already complete → Redirects with warning message
Block not found → Creates notification but continues processing
Insufficient inventory → Logs error and creates notification

Logging:

log_message('info', 'Print job created');
log_message('info', 'Robo Pack EIFS bags created: ' . json_encode($eifs_bags_created));
log_message('info', 'Sticker and bag removed from inventory for print job');
log_message('error', 'EIFS bag type not found');
log_message('warning', 'Attempted to start completed job');

Overview​

Purpose​

Key Features​

Access Requirements​

Workflow Overview​

Front-End Behavior​

Page 1: Robopack Jobs (/robopack/jobs)​

Page Layout​

Interactive Elements​

Page 2: Robo Pack In Progress (/robopack/in_progress/\{job_id\})​

Page Layout​

Interactive Elements​

User Experience Notes​

Back-End Logic​

Controller: Robopack​

Method: jobs()​

Method: in_progress(int $job_id)​

API Controller: PrintJob​

Method: send()​

Method: get_label_info()​

Helper Functions​

find_eifs_bag_type()​

get_eifs_label()​

find_eifs_block_id()​

make_eifs_bags()​

find_starting_number()​

find_print_job_count()​

Database Tables​

print_job Table​

eifs_bag Table​

eifs_bag_target Table​

eifs_block Table​

Authentication & Authorization​

Error Handling​

Overview

Purpose

Key Features

Access Requirements

Workflow Overview

Front-End Behavior

Page 1: Robopack Jobs (`/robopack/jobs`)

Page Layout

Interactive Elements

Page 2: Robo Pack In Progress (`/robopack/in_progress/\{job_id\}`)

Page Layout

Interactive Elements

User Experience Notes

Back-End Logic

Controller: `Robopack`

Method: `jobs()`

Method: `in_progress(int $job_id)`

API Controller: `PrintJob`

Method: `send()`

Method: `get_label_info()`

Helper Functions

`find_eifs_bag_type()`

`get_eifs_label()`

`find_eifs_block_id()`

`make_eifs_bags()`

`find_starting_number()`

`find_print_job_count()`

Database Tables

`print_job` Table

`eifs_bag` Table

`eifs_bag_target` Table

`eifs_block` Table

Authentication & Authorization

Error Handling
