Mold

The Mold Station is a real-time inventory management system that automatically tracks EPS (Expanded Polystyrene) blocks as they are created by the mold machine. The system integrates a Python monitoring application running on the mold machine computer with a web-based interface, providing operators with live visibility into block production and the ability to manage block data, flag problematic cycles, and verify block information.

Key Features:

Real-time block data synchronization from mold machine
Live table of blocks in inventory
Inline editing of block properties
Block flagging system for quality issues
Automatic notifications to administrators
Integration with silo and lot tracking

Access Requirements:

User must be in one of these groups: super_admin, mold, or admin
Route: /mold/view

Front-End Behavior

Main Interface

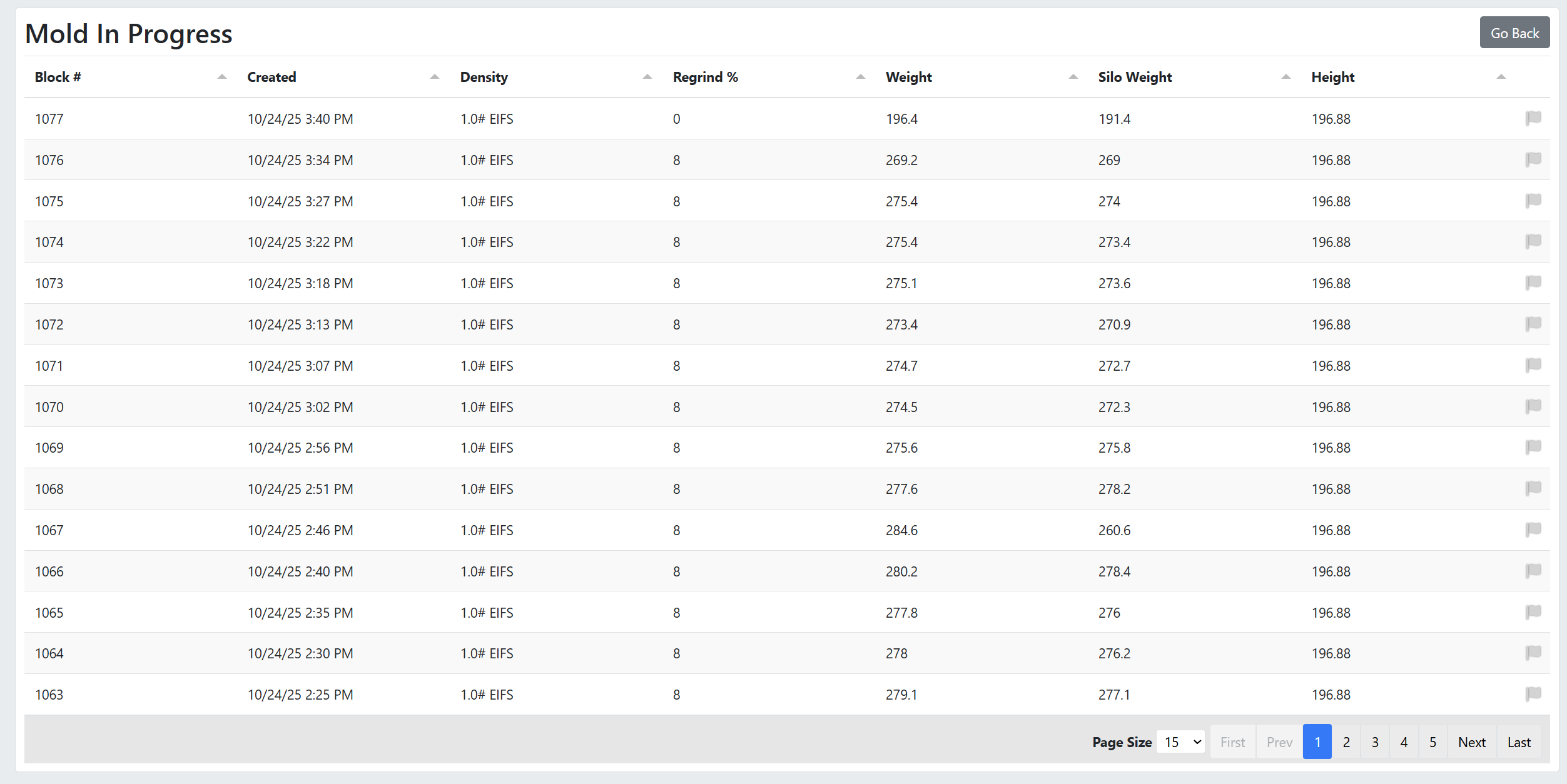

The Mold In Progress page displays a paginated, auto-refreshing table of all unused blocks currently in inventory, sorted by creation date (most recent first).

Table Columns:

Block #: Sequential number assigned by mold machine (resets monthly)
Created: Timestamp when block was molded (format: M/D/YY h:mm AM/PM)
Density: EPS density type (e.g., "1.5# EIFS", "2.0# EIFS")
Regrind %: Percentage of recycled bead used (0-100)
Weight: Final block weight after molding (lbs)
Silo Weight: Total bead weight loaded from silo (lbs)
Height: Block height in inches
Flag Icon: Visual indicator for problem blocks (grey = normal, red = flagged)

Interactive Features:

Inline Editing (Click any cell to edit):

Density: Dropdown list of available densities
Regrind %: Number input (0-100)
Weight: Number input
Silo Weight (load_weight): Number input
Height: Number input

Changes are saved automatically via AJAX and trigger a success notification.

Auto-Refresh:

Table data refreshes every 30 seconds to display newly created blocks
Maintains current page position during refresh

Pagination:

Default: 15 blocks per page
Options: 15, 25, 50, 100
Remote pagination (server-side)

Flag Block Feature

Purpose: Mark mold cycles with quality issues or problems for administrator review.

Workflow:

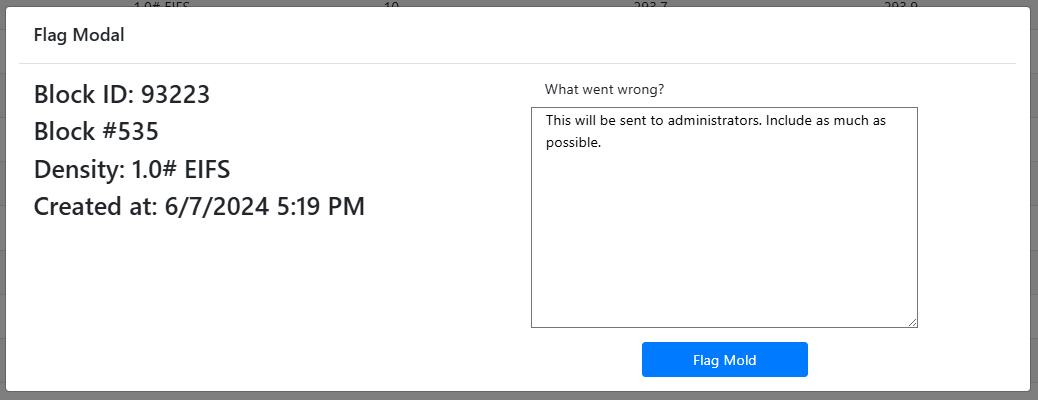

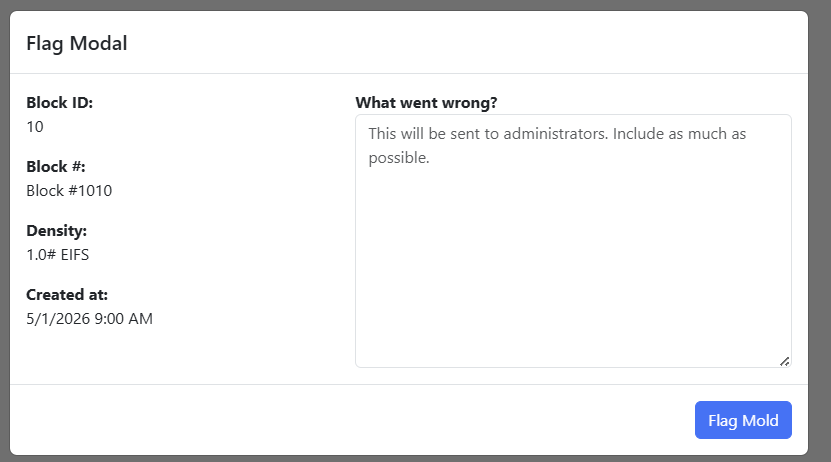

Operator clicks the flag icon next to a block
If block is not flagged (grey icon):
- Modal opens displaying:
  - Block ID
  - Block #
  - Density
  - Created timestamp
- Operator enters explanation in "What went wrong?" text area
- Clicks "Flag Mold" button
- System sends email notification to all administrators
- Icon turns red and modal closes
- Success notification: "Mold cycle flagged"
If block already flagged (red icon):
- Single click immediately un-flags the block
- Icon returns to grey
- Success notification: "Mold cycle un-flagged"

Back-End Logic

Python Monitoring Script

Location: C:\Users\NIP\Desktop\shelter-ent-mold-app\main.py

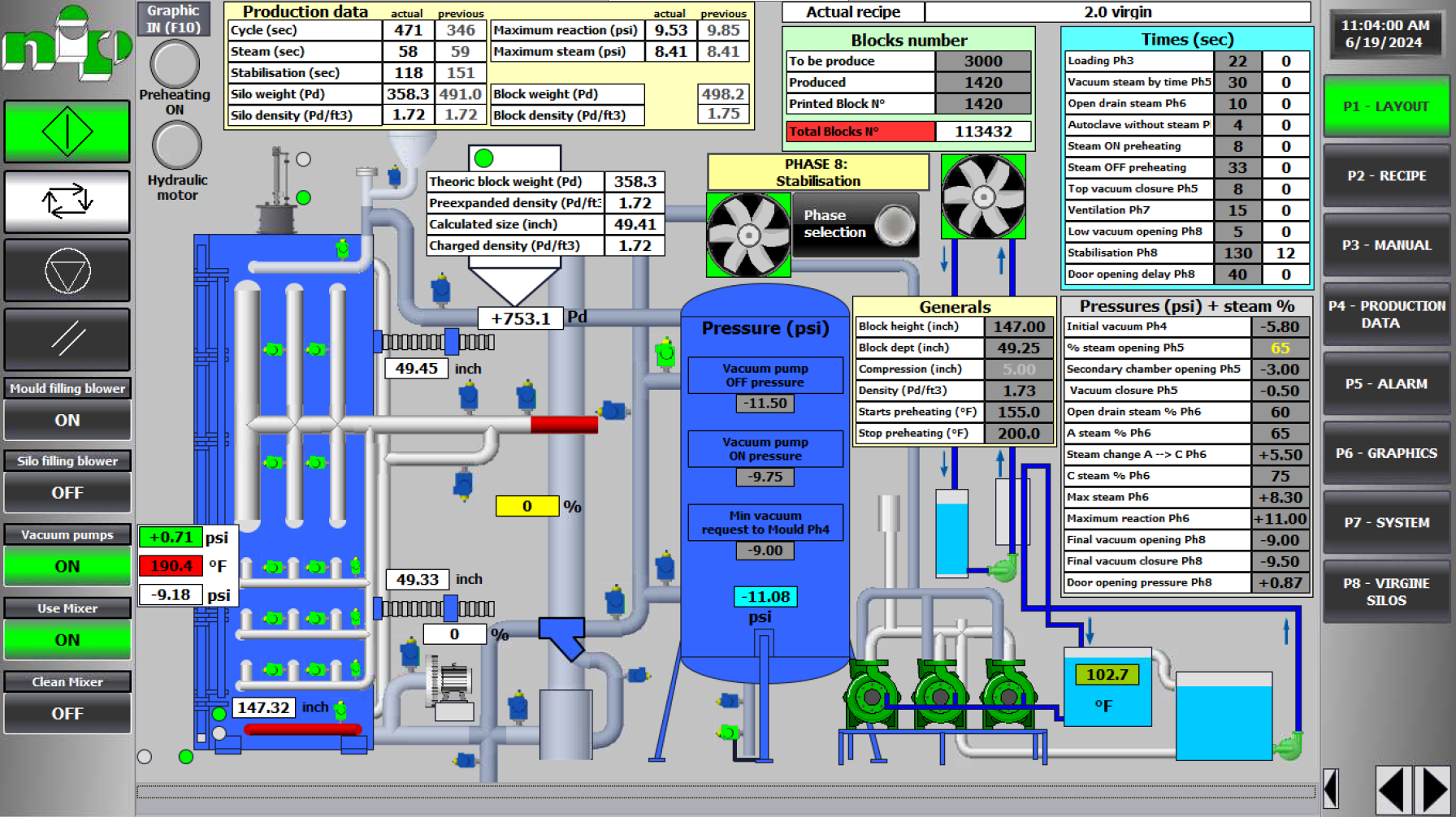

The Python script runs continuously on the mold machine computer, monitoring changes to the monthly mold data file.

Configuration (`settings.json`):

{
  "site_url": "https://dev.shelter-ent.app/index.php/",
  "file_path": ".\\",
  "mold_file_path": ".\\",
  "controller": "api/mold",
  "function": "import_mold_data",
  "api_key": "YOUR_API_KEY",
  "sleep_time": 30,
  "headers": [...]
}

Key Functions:

File Monitoring (handle_file_change):

Computes SHA3-512 hash of mold file every 30 seconds
When hash changes, waits for file to stop changing (10-second intervals)
Once stable, parses the file and exports to web application

Data Parsing (process_block_data):

Reads tab-separated .dat file from C:\WINCC\dati\YYYYMM.dat
Parses 19 fields per block (time, date, recipe, block number, dimensions, weights, densities, cycle times, silo codes)
Strips whitespace and structures data as JSON
Stores local backup: json_files\YYYYMM.json

API Communication (post_data):

Posts JSON array to: {site_url}/api/mold/import_mold_data
Includes Bearer token authentication
Logs response status

Startup Behavior:

Runs immediate export on script start
Begins monitoring for file changes
Displays: "DO NOT CLOSE THIS WINDOW (minimize it)"

Web Application Backend

Controller: `App\Controllers\Mold` (src/app/Controllers/Mold.php)

view() Method:

Permission check: super_admin, mold, or admin groups
Renders: mold/mold_in_progress view
Logs unauthorized access attempts

API Controller: `App\Controllers\Api\Mold` (src/app/Controllers/Api/Mold.php)

import_data() Method (/api/mold/import_mold_data):

Validates 19 block properties per record:
- blocks.*.date: Valid date (m/d/Y format)
- blocks.*.time: Valid time (H:i:s format)
- blocks.*.block_num: Numeric (1-99998)
- blocks.*.height, *.weight, *.load_weight: Numeric > 0
- blocks.*.regrind: Numeric (0-100)
- blocks.*.density: Alpha-numeric string
- blocks.*.raw_silo, *.ground_silo: Silo numbers
- Silo codes for raw and ground material
Processes each block:
1. Combines date + time into created timestamp
2. Maps density string to database ID using parse_density_string() helper
3. Defaults to "Custom" density if no match found
4. Checks for existing block: get_block(created, block_num)
5. If block doesn't exist → Creates new Block_model record
6. If block exists → Updates existing record
7. Links block to lots from raw and ground silos
Returns: Array of imported blocks with count

get_trend_data() Method (/api/mold/get_trend_data):

Returns weekly mold statistics (see Helper Functions below)

API Controller: `App\Controllers\Api\Block` (src/app/Controllers/Api/Block.php)

get() Method (/api/block/get):

Purpose: Fetches paginated blocks for table
Parameters:
- page, size (required)
- block_num, density, job_id (optional filters)
Behavior:
- Returns only unused blocks (date_used IS NULL) unless job_id specified
- Includes related density data
- Sorted by created DESC

save() Method (/api/block/save):

Purpose: Updates block properties from inline editing
Validates: block_id, density_id, block_num, created, height, regrind, weight, load_weight
Returns: Updated block model

flag() Method (/api/block/flag):

Purpose: Flags/un-flags blocks for quality issues
Parameters:
- block_id: Block to flag
- flagged: 0 (un-flag) or 1 (flag)
- comments: Explanation (max 1000 chars, required even if empty string)
Updates: Block_model fields: flagged, comments
Returns: Updated block

Model: `App\Models\Block_model` (src/app/Models/Block_model.php)

Table: block

Fillable Fields:

density_id, block_num, created, height, regrind, weight, depth, load_weight, raw_silo, ground_silo

Relationships:

density(): BelongsTo Density_model
cut_job(): BelongsTo Job_model
eifs_blocks(): HasMany Eifs_block_model (unused)
used_eifs_blocks(): HasMany Eifs_block_model (used)

Timestamps: Enabled (created_at, updated_at)

Helper Functions (src/app/Helpers/block_helper.php)

get_block(string $date, int $block_num): ?stdClass:

Queries database for block matching date and block number
Used to prevent duplicate blocks during import
Returns first matching row or null

parse_density_string(string $density_string): int:

Maps mold machine density labels to database density IDs
Handles variations: spaces, hashtags, case-insensitive
Returns density ID or -1 if not found
Example: "1.5 regrind" → matches "1.5# Regrind" density

get_mold_trend_data(): array:

Calculates blocks created per weekday (this week vs last week)
Computes average cycle time for each day
Returns percentage change and weekly totals
Used for dashboard analytics

get_average_cycle_time(Collection $blocks): string:

Calculates mean time between block creation timestamps
Returns formatted string: "Xh Ym Zs"

Data Flow

Mold Machine
    ↓ (exports to file)
C:\WINCC\dati\YYYYMM.dat
    ↓ (monitored by)
Python Script (main.py)
    ↓ (detects changes via hash)
Parse CSV → JSON
    ↓ (POST request)
API: /api/mold/import_mold_data
    ↓ (validates & processes)
Database: block table
    ↓ (fetched by)
API: /api/block/get
    ↓ (displays in)
Mold In Progress Page (Tabulator table)
    ↓ (operator edits)
API: /api/block/save
    ↓ (updates)
Database: block table

Developer Notes

Important Considerations

Duplicate Prevention:

The get_block() helper checks for existing blocks by date + block_num
Block numbers reset to 1 at the start of each month
Import always updates existing blocks rather than creating duplicates

Density Matching:

parse_density_string() uses fuzzy matching for density labels
Multiple label variations tested (with/without spaces, hashtags)
Falls back to "Custom" density if no match found
Prevents import failures due to label mismatches

Silo/Lot Linking:

Blocks are automatically linked to lots in the silos they were created from
Links created in block_lots junction table
Enables traceability of raw materials used in each block

Real-Time Updates:

Python script runs on startup and monitors continuously
Web interface refreshes table every 30 seconds
Inline edits save immediately via AJAX
No page reload required for data updates

Flagging System:

Admin notification sent via send_notification() helper
Notification includes all block details + operator comments
Un-flagging requires no comment (empty string accepted)

Database Fields

Block Table Columns (from import):

- id (auto-increment)
- density_id (foreign key)
- block_num (from mold machine)
- created (parsed from date + time)
- height (inches)
- regrind (percentage 0-100)
- weight (block weight in lbs)
- load_weight (silo weight in lbs)
- depth (inches)
- raw_silo (silo number)
- ground_silo (silo number)
- raw_silo_code (raw material code)
- ground_silo_code (ground material code)
- cut_job_id (null until used)
- date_used (null until used)
- flagged (0 or 1)
- comments (operator notes)
- created_at (timestamp)
- updated_at (timestamp)

API Endpoints Used

Endpoint	Method	Purpose
`/api/mold/import_mold_data`	POST	Import block data from Python script
`/api/mold/get_trend_data`	POST	Fetch weekly statistics
`/api/block/get`	POST	Fetch paginated blocks for table
`/api/block/save`	POST	Update block properties
`/api/block/flag`	POST	Flag/un-flag blocks
`/api/density/get_all`	POST	Load density dropdown options

JavaScript Libraries

Tabulator: Interactive table with inline editing and pagination
jQuery: AJAX requests and DOM manipulation
Moment.js: Date/time formatting
Notify.js: Success/error notifications

Validation Rules

Import Validation:

Dates must be valid m/d/Y format
Times must be valid H:i:s format
Block numbers: 1-99998
Regrind: 0-100%
Heights, weights must be > 0
Silo numbers within acceptable ranges

Save Validation:

All numeric fields ≥ 0
Regrind ≤ 100
Density ID must exist in database
Block ID must exist

Flag Validation:

Flagged must be 0 or 1
Comments required (even if empty string)
Max 1000 characters

Example Usage

Normal Operation

Mold Machine Starts:
- Python script launches automatically
- Performs initial export of all blocks in current month's file
- Begins monitoring for changes
Block is Molded:
- Mold machine writes block data to 202410.dat
- Python script detects file hash change
- Waits for file to stabilize (10 seconds)
- Parses entire file and POSTs to API
- Web application validates and stores/updates blocks
Operator Views Page:
- Navigates to /mold/view
- Sees table of all unused blocks
- Table auto-refreshes every 30 seconds
Operator Edits Block:
- Clicks "Regrind %" cell for block #1077
- Changes value from "0" to "8"
- Clicks outside cell
- AJAX request saves change
- Success notification appears
Operator Flags Problem Block:
- Clicks grey flag icon next to block #1075
- Modal opens with block details
- Types: "Block weight too low, density incorrect"
- Clicks "Flag Mold" button
- Admin receives email notification
- Icon turns red in table

Troubleshooting Scenario

Problem: Block appears in mold file but not in web application

Solution:

Check Python script console for errors
Verify script is running (should show "Waiting for file changes...")
Check logs/log-YYYY-MM-DD.txt for error messages
Verify API key in settings.json is valid
Check network connectivity between mold computer and web server
Review web application logs for validation errors

Problem: Density shows as "Custom" when it should be specific type

Solution:

Check exact density string in .dat file
Add new variation to parse_density_string() function
Or update density label in database to match mold machine output

Data Comparison (Admin Feature)

Purpose: Verify all blocks from mold file are in database

Workflow:

Admin navigates to Admin Panel
Clicks "Data Comparison" under Database section
Selects and uploads block file (.dat format)
Clicks "Compare Mold File to Inventory"
System displays:
- Count of blocks not found
- Date and block number for each missing block

Use Case: Monthly audit to ensure no blocks were missed during import

Integrated Systems

[Pre-Expansion Station]: Blocks are created from pre-expanded bead
[Inventory Management]: Blocks tracked as primary inventory
[EIFS Cutting Station]: Uses blocks to create EIFS blocks
[Line Cutting Station]: Uses blocks to create line items
[Silo Management]: Tracks bead source for each block
[Lot Tracking]: Links blocks to material lot numbers

Python Script: C:\Users\NIP\Desktop\shelter-ent-mold-app\main.py
Settings: shelter-ent-mold-app\settings.json
View Controller: src/app/Controllers/Mold.php
API Controllers:
- src/app/Controllers/Api/Mold.php
- src/app/Controllers/Api/Block.php
Model: src/app/Models/Block_model.php
Helpers: src/app/Helpers/block_helper.php
View: src/app/Views/mold/mold_in_progress.php
JavaScript: src/public/js/mold/mold_in_progress.js
CSS: src/public/css/mold/mold_in_progress.css

Database Tables

block (primary)
density (lookup)
silo (material source)
lot (material batch)
block_lots (junction table)
job (when blocks are used)
eifs_block (derived inventory)

Cost Calculations

Labor Cost – Mold:

Mold Labor Cost = Molder Rate of Pay × Pre-defined Pre-Expansion Time

Molder Rate of Pay: Hourly rate for employees labeled as "Mold"
Pre-defined Pre-Expansion Time: Standard mold time per density/recipe

Material Cost per Block:

Block Material Cost =
  [(Price per lb / 2) × (Block Weight × Regrind %)] +
  [(Price per lb) × (Block Weight × Virgin %)] /
  Number of Blocks Created

Front-End Behavior​

Main Interface​

Table Columns:​

Interactive Features:​

Flag Block Feature​

Back-End Logic​

Python Monitoring Script​

Configuration (settings.json):​

Key Functions:​

Web Application Backend​

Controller: App\Controllers\Mold (src/app/Controllers/Mold.php)​

API Controller: App\Controllers\Api\Mold (src/app/Controllers/Api/Mold.php)​

API Controller: App\Controllers\Api\Block (src/app/Controllers/Api/Block.php)​

Model: App\Models\Block_model (src/app/Models/Block_model.php)​

Helper Functions (src/app/Helpers/block_helper.php)​

Data Flow​

Developer Notes​

Important Considerations​

Database Fields​

API Endpoints Used​

JavaScript Libraries​

Validation Rules​

Example Usage​

Normal Operation​

Troubleshooting Scenario​

Data Comparison (Admin Feature)​

Related Documentation​

Integrated Systems​

Related Code Files​

Database Tables​

Cost Calculations​
